Ürün Detayları
Menşe yeri: ÇIN
Marka adı: LHTi
Sertifika: ISO9001:2015; TUV; SGS; BV
Model numarası: titanyum yüzük
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 5 adet
Fiyat: USD12.00-35.00 per kg
Ambalaj bilgileri: Nakliye kaynaklı herhangi bir travmaya karşı ek koruma için yumuşak köpüklü kontrplak kutu
Teslim süresi: 12-25 iş günü
Ödeme koşulları: T/T, MoneyGram, L/C, Western Union, Paypal
Yetenek temini: ayda 200000 kg
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical engineering & Petrochemical technology |
Characteristic 1: |
Excellent corrosion resistance |
Surface: |
Bright polished |
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical engineering & Petrochemical technology |
Characteristic 1: |
Excellent corrosion resistance |
Surface: |
Bright polished |

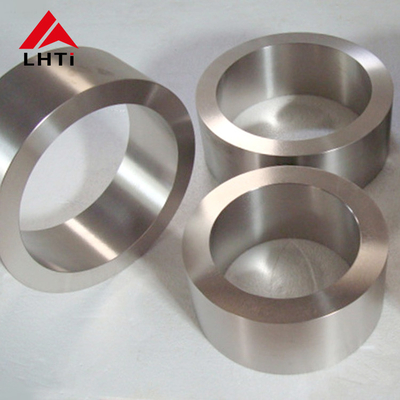

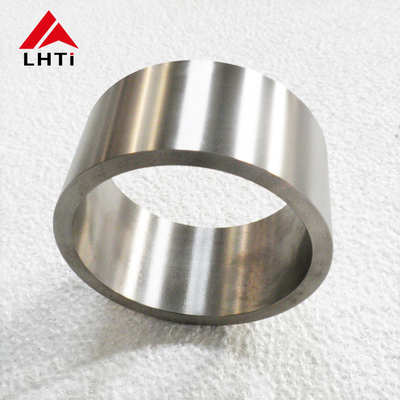

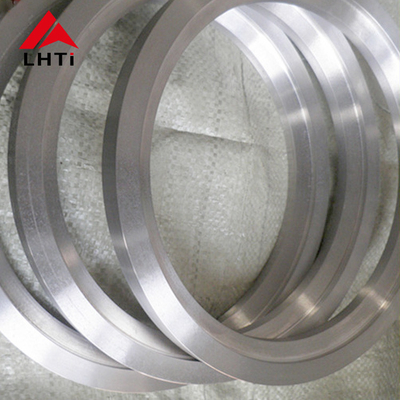

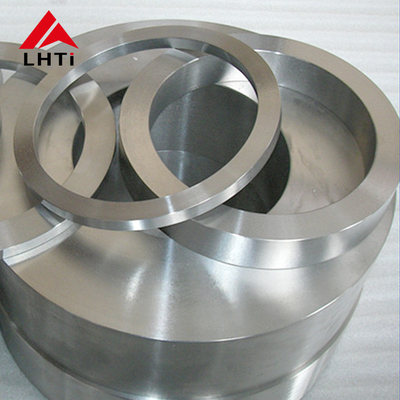

ASTM B381 Titanium Forged Rings
A astm b381 Titanium Forged rings was made in three steps. The process flows grains to the tangential and radial directions and provides mechanical properties such as strength, ductility, and impact and fatigue resistance to the workpiece.
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
