Ürün Detayları
Menşe yeri: Baoji, Çin
Marka adı: LIHUA
Sertifika: ISO9001, TUV etc.
Model numarası: LH-TH
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 1 adet
Fiyat: US dollar $15/kg--US dollar $35/kg
Ambalaj bilgileri: ihracat için kontrplak kutu
Teslim süresi: 5-25 iş günü
Ödeme koşulları: L/C, T/T, Western Union
Yetenek temini: ayda 5000 kg
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

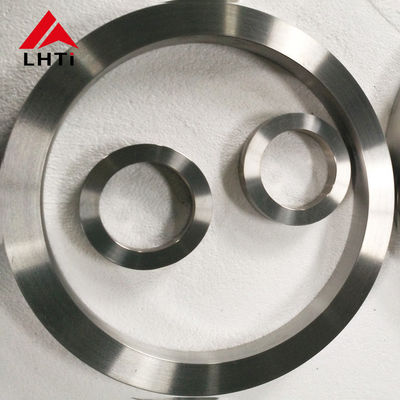

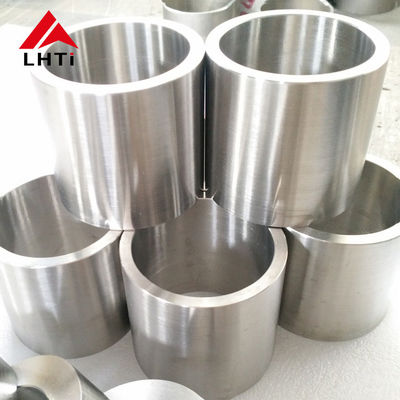

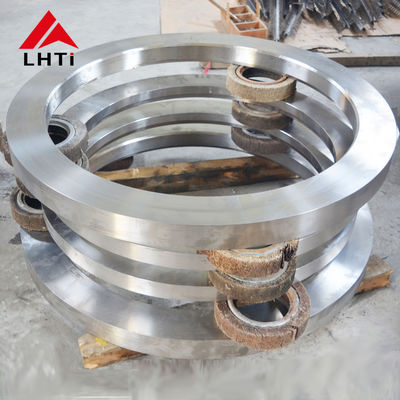

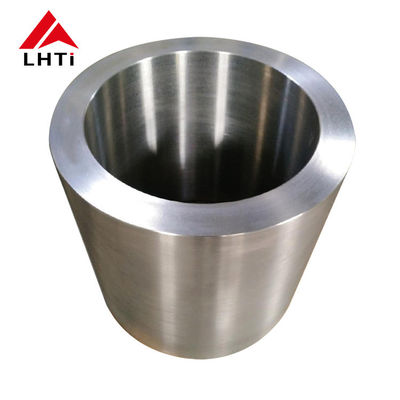

GR5 Forging Titanium Alloy Ring ASTM B381
Astm B381 Titanium Forgings Parts & Components:
In recent years, there has been a significant rise in the demand for titanium and titanium alloys, primarily used in aircraft and aerospace applications. The price of commercially pure titanium (CP) has risen sharply since 2003 to 2014, from $15.00 per lb to $30.00 per lb. It is an extremely light weight and high strength material. Certain alloys like 6AL-4v, 8Mn, 8Al-1MO-1V, 5Al-2.5Sn,and 6Al-2Sn-4Zr-2Mo, are also used in Aircraft engine applications due the ability of these alloys to with stand high temperature environments.
Titanium forgings that are used with Commercially Pure Alloys (Grade 1 ,Grade 2, Grade 3, Grade 4) are primarily used in Aircraft Frame applications.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
